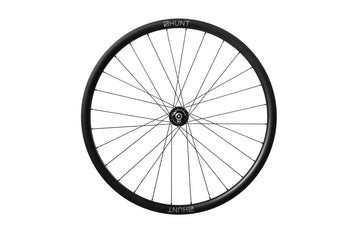

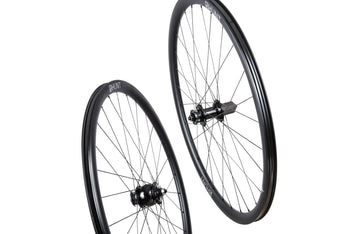

HUNT 30 Carbon Dynamo Disc Wheelset

HIGH PERFORMANCE CARBON VERSION OF OUR EVER-POPULAR SUPERDURA DYNAMO DISC.

30 DEEP | 27 WIDE EXT | 20 WIDE INT | 1759G

The Purpose

We've taken the dynamo capabilities of our SuperDura Dynamo wheelset, and combined them with the performance of our super-wide carbon rims. Created for 'Josh' types (Ultra-Distance Heros) but also enjoyed by 'us' types (a bit less super-human, but still want convenience when commuting, training and road/off-road bike-packing).

A dynamo hub is an ingenious idea, a small coil of copper wire that spins inside a group of magnets to produce electricity, effectively it is an electric motor in reverse. You can then connect up electric devices such as lights, and never need to worry about having to abandon your ride due to lack of light. Following a large number of requests for a dynamo wheelset, our HUNT began for a lightweight and durable wheelset that provides you with freedom from constant charging of lights for your on and off-road bike-pack adventures, fast commuting and daily winter training. Read More

The HUNT 30 Carbon Dynamo wheelset is the result of pairing the SON Delux12 Dynamo hub with our ever-popular 30 Carbon rim. It features all of the fine details you’d come to expect from us, including our proven wide tubeless 30 Carbon rim (as used in the 30 Carbon Gravel & 30 Carbon Aero Disc), extra sealed and shielded 4Season Disc rear hub, and a seriously durable high 28-spoke build (of Pillar's light and extremely strong triple-butted PSR spokes). Even with the extra 240g of the dynamo hub, this wheelset is still lighter than many disc-brake wheels fitted to bikes as original equipment.

For the HUNT 30 Carbon Dynamo wheelset, we again collaborated with SON (Schmidt Original Nabendynamo). We had long been aware of just how highly regarded SON are for their durability and performance. Wilfred Schmidt is incredibly passionate about dynamos so our chats with him excited our inner geeks. Wilfred and his team have been engineering their dynamo hubs in Germany since their first prototypes 25 years ago.

SON dynamos are renowned for their market-leading efficiency. When your light is drawing power (light switched on) the efficiency of a SON hub is an impressive 65%, so at the German testing standard of 3 watts / 6 volt dynamo output (11-12 mph with the SONDelux) just 4.6 watts of your rolling power is used. Of course the light is always available, so no realising you forgot to charge and having to abandon your ride.

With the light off/unplugged (e.g. day light riding) the graph below shows that for the SONdelux there is less than half a watt extra rolling resistance compared to a high quality normal non-dynamo hub. For a bit of context; for a 1 hour commute fast training ride, as very amateur cyclists here at HUNT, we would expect to produce somewhere between 160-250 watts average depending on our weight and level of fitness. SON Dynamo graph

The deep thought and detail that goes into every SON Dynamo sits well with our philosophy to HUNT for improvements in even the smallest details. The connectors used by SON are a great example; they are universal spade connectors available from most electrical retailers/suppliers/hardware stores rather than a connector that is unique to the hub design. This means that if the connector is lost or damaged far from home finding parts will be a whole lot easier.

Please note:

These wheels are adaptable for 12mm and QR axles. They are not suitable for 15mm axles.

Dynamo specific AC power charging devices or lights (Exposure Revo) are required to work with dynamo hubs. Read Less

The Experts' View

Want to add tubeless tires?

We can supply or fit tubeless tires (including sealant) to your wheels.

The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.

Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tire. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.

Specs Overview

The Wheelset That Will Brighten Your Day and Night

Rims | Unidirectional T24/30 with 3K weave re-enforced spoke holes. Disc specific. 30mm deep, Super-wide 27mm aero U-profile.
Tires | Tubeless-ready for lower weight & rolling resistance, featuring H-lock bead-seat for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
Dynamo Front Hub | SONdelux 12mm with QR adaptor supplied. 3 watt / 6 volt output at 18-19kmh tested to German standard K687 for output requirement. See SonDynamo Information Here.
Hubs | HUNT 4Season Disc J-bend spoke hubs with extra bearing shielding. H_CERAMIK freehub coating. SRAM XD Driver available. Centre-lock disc mount.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
Included | Dynamo universal spade connectors and heat shrink, Tubeless tape & valves, spare spokes, axle adaptors (please fill in the simple form after checkout to select your required size).
See the full specs here
Weight | 1759g

Please note: If you require a 6 bolt adaptor you can purchase separately here

hunt_gallery

Full Details

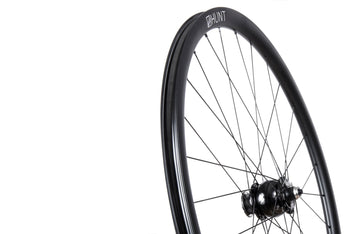

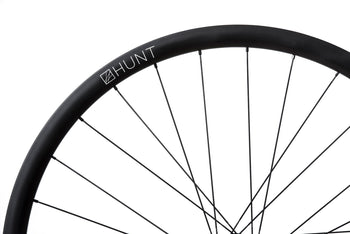

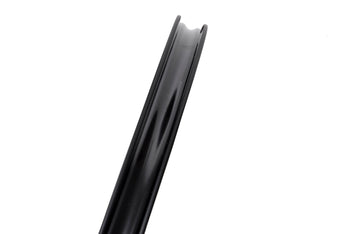

Rims

Disc-specific tubeless-ready profile. Designed to work excellently with normal clincher tires and tubes or tubeless tires.
H-lock bead-seat up-kicks for easy and secure tubeless installation
Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes
27mm outer and 20mm inner width ideal for 23-50mm tire widths
30mm depth
Matt black base finished with matt white contrasting graphics.

Spokes

28 front and rear laced 2 cross.
Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
J-Bend for ease of replacement.
Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
Black stainless treatment

Nipples

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
16mm length with washer for a strong connection to the spoke added durability.
14 gauge.
Black anodized finish.

Tires Info

Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
Please do not exceed the maximum pressure stated on your tire.
Suitable for tires from 23mm up to 50mm wide.
Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson (Sector/Overide Only), Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.

Axle Size

These wheels are available with all existing disc brake road bike axle adapter sizes except for 15mm front. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

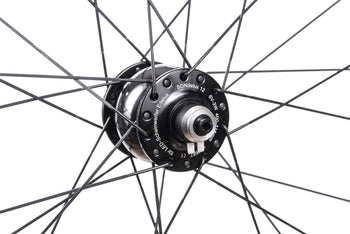

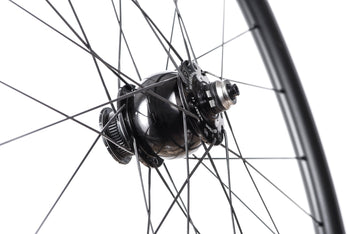

Front Dynamo Hub

We fit the axles you need, just complete the simple form shown after checkout:
All existing road/CX disc front axle standards are available including:

Quick Release (Quick release skewers included)
12mm Bolt Thru

All axle adapters are also available separately.
SONdelux 12mm.
3 watt / 6 volt output at 18-19kmh.
Tested to German road traffic regulations (StVZO) standard K687 for output requirement.
Efficiency: 65% at 15 km/h in 700c wheel.
No-Load Power Input: 0,4 W at 15 km/h in 700c wheel
Magnets: neodym iron boron, 26 poles.
Connection: 4,8 mm flat spades, 2-pin, to connect without ground connection (special design without connectors).
Axle: hollow axle ø10 mm aluminium 7075 T6.
Axle Ends: stainless steel.
Bearings: deep groove ball bearing 629-2RSH (SKF).
Hub Shell: aluminium 6082 T6.
Sealing: alloy dust shields, rubber lip seals and pressure compensation system.
Warranty: 5 years.
Weight 395g.

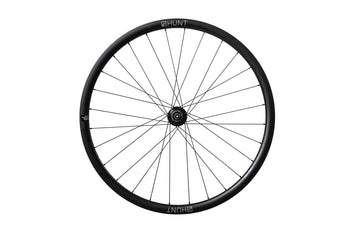

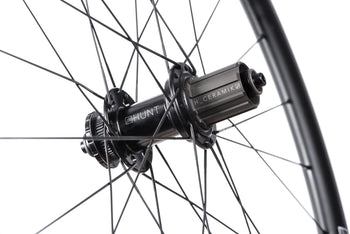

Rear Hub

We fit the axles you need, just complete the simple form shown after checkout.
All existing road/CX disc rear axle standards are available including:

Quick Release (Quick release skewers included)
12x142 Bolt Thru
12x135 Bolt Thru (uncommon)
10x135 Bolt Thru (uncommon)

All axle adapters are also available separately.
7075-T6 heat-treated aluminium alloy freehub body.
H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
6 individual pawls resulting in just 5 degree engagement angle
All freehub standards accounted for, including:

Shimano/SRAM
Campagnolo
SRAM XD Driver
SRAM XDR Driver

Hunt Race Season Disc straight-pull super-light alloy.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.

Bearings

Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
Sealed cartridge replaceable units.
Dual full-contact seals.

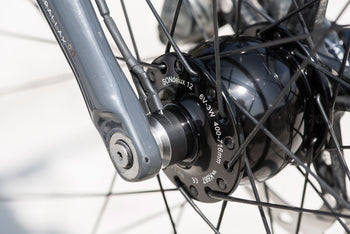

Son Dynamo

SONdelux | Highly efficient, faster and lower weight.

Drop-bar road and adventure bikes are designed for going fast, whereas many dynamo hubs were designed for town bikes. The rapid advancement and incredible efficiency of LED lighting compared to older halogen bulbs has meant that lights such as the Exposure Revo (available as a package with these wheels - please click here) would run at its whopping 800 lumen output at just 10mph. SON realised that by using a smaller/lighter generator, they could reduce drag by an impressive 20% and still achieve the 3 watt / 6 volt output (800 lumens on the Revo light) at just 11-12mph. Even at 10mph, you will get upwards of 500 lumens from the Exposure Revo light! The super-fast SONdelux is the result of this innovative thinking... 20% better rolling resistance and lower weight, only 395g (the SON28 weighs 430g).

5 Year Warranty (incl. Bearings)

The unique SON Pressure Compensation System allows us to offer a you huge 5 year warranty on the SON Dynamo hubs including bearing wear.

SON Pressure Compensation System

All dynamos heat slightly during operation and then cool, the cooling of air in the hub body of most dynamo hubs can cause lowering air pressure inside the hub. This lower air pressure can lead to suction of water through the bearing seals significantly reducing the life of hub bearings. However, SON dynamos feature their unique Pressure Compensation System which consists of an air flow port on the axle cap and inside the axle (as shown below) and an air reservoir tube.

SON Dynamo Pressure Compensation Port

The SON Pressure Compensation System allows air pressure to be equalised, thus extending bearing life to a huge 50,000-100,000 kms. The tube (shown below) is long enough that water doesn't reach the end, and when the dynamo heats up again air pressure increases and any air and water is forced back out of the axle end of the tube preventing damage.

SONdelux set-up, user guides and further info - please click here

Why only suitable for 12mm and QR, not 15mm?

"We would like to offer a 15mm option on these Dynamo wheels. Dynamo wheels (whilst being able to adapt to QR with a sleeve) cannot be adapted between 12 and 15mm (unlike a normal hub) due to the hub caps needing to be fixed and cabled for the dynamo to operate, and 12mm forks will not accept a 15mm cap as they have a small ridge above the axle interface. The AdventureDynamo wheels can adapt to any other current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout. Of course we are looking at 15mm as an option in the future, but it would probably need to be 6-bolt to allow the larger ball bearings; ball bearing size is very small on 15mm dynamo axles if fitted inside a centre-lock disc mount diameter and around the larger dynamo axle thickness (needs space for wire to pass through the bearing inner diameter unlike a normal 15mm hub axle).

Apologies to anyone who was hoping for a 15mm MASON x HUNT Dynamo option, it was a difficult decision to make for our first dynamo option, and we of course want to serve as many riders as possible. I hope this explains it a bit more, we would love to offer an option for you soon. Obviously since drop bar disc brake bikes are now becoming more stable in their standards hopefully these things will be simpler in future, here's hoping as it would probably make all our lives easier as riders. Thanks again and enjoy your riding, Tom Marchment (Hunt Bike Wheels | TheRiderFirm)

Low Weight, High Convenience - 800 Lumen Exposure Revo"

Exposure Lights tried, tested and much loved dynamo powered light. Providing up to 800 lumens of power that is only limited by your endurance, it is the new must have for adventure riding, touring and commuting. Plus it's manufactured just down the road from us here in Sussex, UK.

The Exposure Revo Dynamo light weighs a feathery 110g as it needs no battery, so as a package the light and hub weigh much the same as a normal hub and battery powered light, without that "oh, my lights run out of charge... I can't ride" nightmare.

Up to 1 hour of light even when your bike is stopped!

Stand Light Technology | When you stop, the Revo’s Stand Light provides ten minutes of light at 400 lumens running for up to an hour at a diminishing level. The retained energy allows you to quickly get up to full power when you start cycling again or get your tent up for a night in the wilderness.

Warranty, HUNT Rolling Road Tests & Weight Limits

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 100Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

Tubeless Tire Options

These are only some of the options you can have fitted on your wheels. To see the full range, click here

Schwalbe G-One Allround Tubeless Tires - 35 or 38mm

The Schwalbe Tubeless tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The G-One's are Schwalbe's brand new gravel tire, designed to offer a low rolling resistance yet offer plenty of grip on gravel and dirt tracks.

The highly respected German Magazine TOUR said: "Unbeatable with punctures... – the "self-repair" with sealant means that no tube can compare."

Schwalbe G One Speed Tubeless Tires - 30mm

Unleashing profile and breathtakingly fast - especially when large volume counts. As a 30mm wide road race version with V-Guard, G-One Speed is a tire for the real tough jobs. You can ride it as a handmade tubular or with the most modern tubeless easy technology. But it is also a guarantee for maximum speed in the extra-wide 60mm execution - of course, not only at the fascinating beach races on Holland’s coasts. The new G-One Speed is an evolution of the former S-One and Big One.

Reviews

Bike Magazine and Website Experts' Views

	Bikerumor Editor's Choice Award "The best wheel award for 2018 goes to Hunt for making performance wheelsets with a hub dynamo. The Adventure Dynamo Disc is one option for 650B adventures, but their Search 29 Dynamo Disc mountain bikepacking wheels together with Mason Cycles are an equally solid option if you need a 700c/29er setup. Ride farther, charge you GPS during the day, and light the way at night – no batteries required!"
	4/5 STAR REVIEW "Overall these wheels are excellent. They're light and well built, the front dynamo is as good as they come for road riding and the rear hub has been great too. They're sensibly built, come with spares, and are set up for the long haul."
	9/10 REVIEW - HUNT 30 CARBON GRAVEL DISC "The Hunt 30 Carbon Gravel Disc wheelset is versatile, robust, and caters to the needs of the modern rider."
	4.5/5 Stars Review - HUNT SUPERDURA DYNAMO DISC "Near-faultless performance and great value: a must for your list if you're looking into dynamo power"
	"New wheels for adventure riders and commuters are designed to be lightweight and durable."

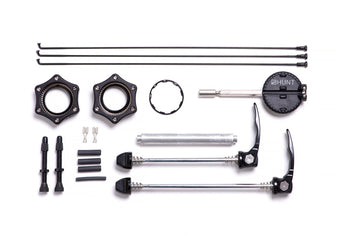

In the Box

HUNT Black Shield tubeless tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed
Tubeless Valves
Spare of each spoke plus nipples
Quality control card signed by your wheel builder
