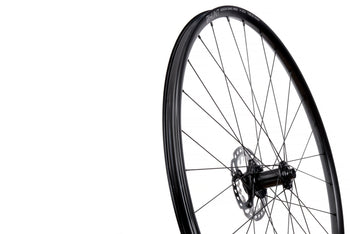

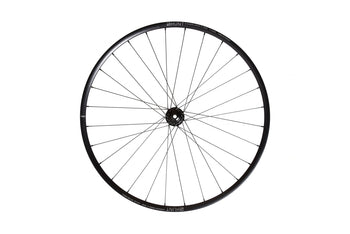

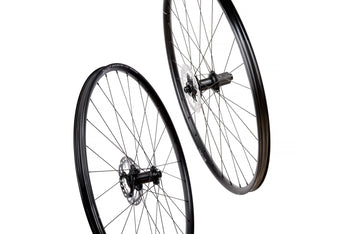

HUNT 4 Season Gravel Disc X-Wide Wheelset
Our ever-popular 4 Season Gravel Disc receives the XW treatment. 25mm rim bed optimized for 35c+ tires, for properly burly off-road hammering.

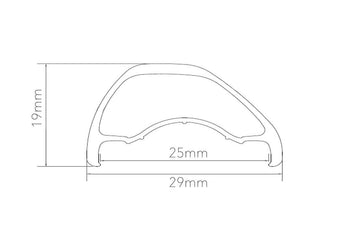

19 DEEP | 29 WIDE EXT | 25 WIDE INT | 1698G
The Purpose
The 4 Season Gravel Disc has been a staple in our range from very early on. As a more burly version of the 4 Season Disc (owing to higher spoke count and wider rim) it was a great option for those wanting to hit the path less travelled. Fast-forward a couple of years, and the demands of gravel riding have taken on a whole new dimension, with riders seeking trails and routes you'd formerly only consider a mountain bike for. Enter the X-Wide, the wheelset designed to shine where the boundaries are blurred...Read More
As you’d come to expect from us, we’ve invested in high-specification spokes, rims and hubsets, so you don’t pay a massive weight penalty for that extra off-road durability. Long-lasting performance both on and off-road. Don’t be restricted, grasp your freedom. The extra-wide rim is ideal for properly wide (35 to 50+) gravel tires, so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence! Read Less
The Experts' View
Tubeless Tire Fitting Option
We can fit tubeless tires (including sealant) to your wheels.
The wheels are also designed to work excellently with clincher tires and tubes. See tire fitting options here.
Specs Overview
The Wheelset That Can Take You Anywhere, Anytime
- Rims | Super-wide (29mm external, 25mm internal) 6066-T6 (+34% tensile strength vs 6061-T6) Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x25.
- Tires | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10 degree FastEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XD and XDR Driver available. Centre-lock disc mount.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size)
- See the full specs here
- Weight | 1698g
Please note: If you require a 6 bolt adaptor you can purchase separately here
Full Details

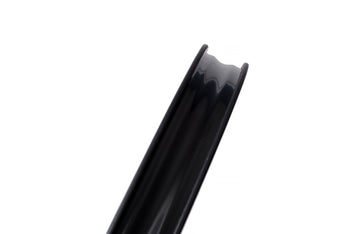

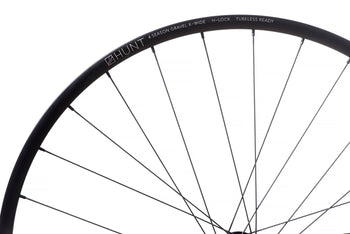

Rims
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless-rim tape and valves included.
- H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
- 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy
- Asymmetric, to balance spoke tensions.
- Disc-specific tubeless-ready profile.
- 29mm outer and 25mm inner width ideal for 35-50mm+ tire widths.
- 19mm depth
- Matt black anodized finish with laser etched graphics for low weight with excellent durability.
Spokes
- J-bend cold-drawn
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
- 28 spokes laced 2-cross front and rear.
- Black stainless treatment.
Nipples
- Brass for anti-corrosion resistance.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning.
- 12mm length.
- 14 gauge.
- Black anodized finish.
Tires Info
- Maximum tire pressure for this rim is 45psi when used with 35-45mm tires. Maximum tire pressures for other tire sizes: 30mm do not exceed 70psi, 33mm do not exceed 50psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
- The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire
- Best suited for tires from 35mm wide upwards.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

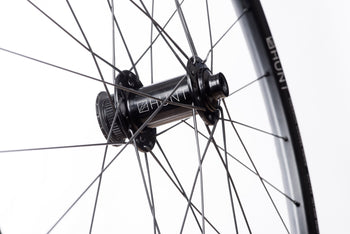

Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- All axle adapters are also available separately.
- HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.

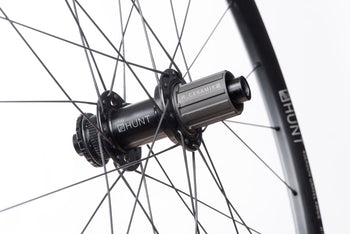

Rear Hub
- 7075-T6 heat-treated aluminium alloy freehub body.
- All freehub standards accounted for, including:
-
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
- We fit the axles you need, just complete the simple form shown after checkout.]
- All existing road/CX disc rear axle standards are available including:
-
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
Bearings
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 115kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires minimum 28mm at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Fitting Options
These are only some of the options you can have fitted on your wheels. To see the full range, click here
 |
Schwalbe G-One Allround Tubeless Tires - 35 or 38mmThe Schwalbe Tubeless tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The G-One's are Schwalbe's brand new gravel tire, designed to offer a low rolling resistance yet offer plenty of grip on gravel and dirt tracks. |
Reviews
Bike Magazine and Website Experts' Views
|
4.5/5 Review"Perfect rim width to work with gravel tires, plus they are tough, stiff, great to ride on and a bargain" |
|
Designed as a versatile do-it-all wheelset that’s ready for anything - HUNT 4 Season Gravel Disc Review"There are very few wheels that can touch the 4Season Gravel Disc when it comes to value and serviceability." |
 |
Built to exacting specifications, and has proven to be a very reliable and flexible package that is perfect for gravel cycling. - HUNT 4 Season Gravel Disc Review"This a simple, no nonsense wheelset with solid and reliable parts...” |

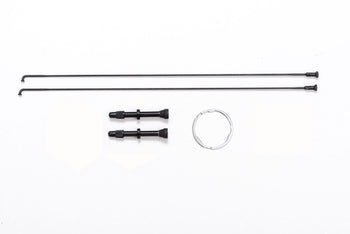

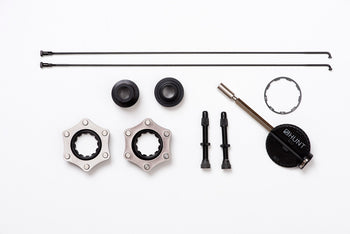

In the Box
Contents
- HUNT Black Shield tubeless tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
Our ever-popular 4 Season Gravel Disc receives the XW treatment. 25mm rim bed optimized for 35c+ tires, for properly burly off-road hammering.
