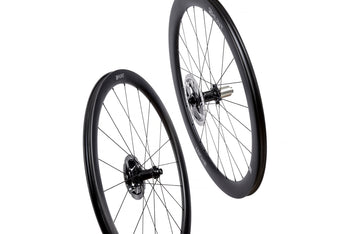

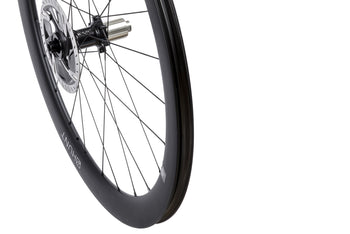

HUNT 4050 Carbon Aero Disc Wheelset
MIXED DEPTH PERFORMANCE, NOW IN DISC FORM.
40/50 Deep | 27 Wide | 1458g
The Purpose
Read the full aerodynamics report on the 50 Carbon Aero Disc
Many of you asked about us bringing the benefits of mixed depths over to our disc-brake range, and so of course we listened. Going deeper on the back provides additional aerodynamic advantages, but the shallower front end improves stability.
Pro road races, criteriums, and even time trials, are being won by disc-brake bikes with increasing frequency. The revolution is happening, and to capitalise you will need an aero wheelset that delivers speed in buckets. Introducing the 4050 Carbon Aero Disc. Read More
The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 19mm internal rim bed opens out your tire profile providing exceptional vibration reduction, grip and low rolling-resistance.
The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. We’ve even upgraded to LU/LB bearings which are low-friction sealed on the internal face to further reduce rolling resistance and increase your speed whilst maintaining excellent sealing on the exposed faces. The latest breed of tubeless tires give-up nothing in weight to their clincher counterparts, as well as removing the tube for weight saving and reducing rolling resistance, so tubeless was essential.Read Less
The Purpose
Read the full aerodynamics report on the 50 Carbon Aero Disc
Many of you asked about us bringing the benefits of mixed depths over to our disc-brake range, and so of course we listened. Going deeper on the back provides additional aerodynamic advantages, but the shallower front end improves stability.
Pro road races, criteriums, and even time trials, are being won by disc-brake bikes with increasing frequency. The revolution is happening, and to capitalise you will need an aero wheelset that delivers speed in buckets. Introducing the 4050 Carbon Aero Disc. Read More
The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 19mm internal rim bed opens out your tire profile providing exceptional vibration reduction, grip and low rolling-resistance.
The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. We’ve even upgraded to LU/LB bearings which are low-friction sealed on the internal face to further reduce rolling resistance and increase your speed whilst maintaining excellent sealing on the exposed faces. The latest breed of tubeless tires give-up nothing in weight to their clincher counterparts, as well as removing the tube for weight saving and reducing rolling resistance, so tubeless was essential.Read Less
Want to add tubeless tires?
We can supply or fit tubeless tires (including sealant) to your wheels.
The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.
Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tire. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
Specs Overview
The Ultimate Mixed Depth Road Disc Wheelset
- Rims | Features disc-specific, unidirectional T700/800 rims, offering 19mm internal and 27mm external width, and a 40/50mm mixed depth U-shape aero profile.
- Tires | Tubeless-ready for lower weight and rolling resistance, featuring H_LOCK technology for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
- Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
- See the full specs here
- Weight | 1458g
- UCI Approved
Please note: If you require a 6 bolt adaptor you can purchase separately here
Full Details

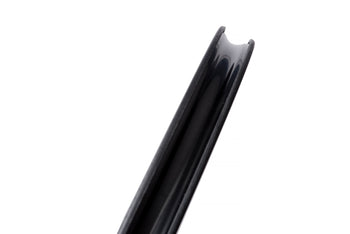

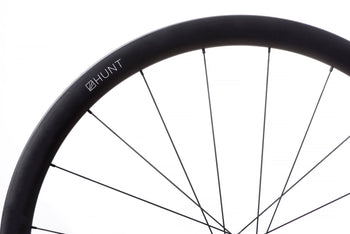

Rims
- Disc-specific tubeless-ready profile
- H_LOCK bead-seat up-kicks for easy and secure tubeless installation
- Toray T700/800 unidirectional and 3K weave carbon fiber with 3K weave bed and spoke areas
- 27mm outer and 19mm inner width
- 40/50mm mixed depth
- Matt black base finished with matt white contrasting graphics.
Spokes
- 20 front and 24 rear laced 2 cross.
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- Straight-pull for excellent torsional strength and direct power transfer
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. square spoke key included.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.
Tires Info
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
- Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi
- Please do not exceed the maximum pressure stated on your tire.
- Suitable for tires from 23mm up to 50mm wide.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

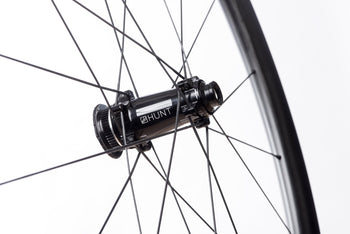

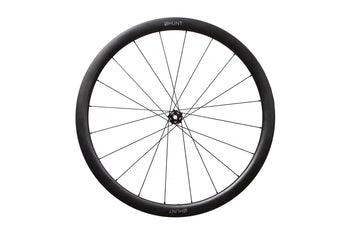

Front Hub
- We fit the axles you need, just complete the simple form shown after checkout:
- All existing road/CX disc front axle standards are available including:
- Quick Release (Quick release skewers included)
- 12mm Bolt Thru
- 9mm Bolt Thru (uncommon)
- All axle adapters are also available separately.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

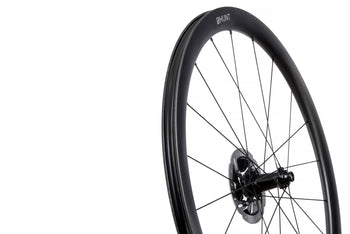

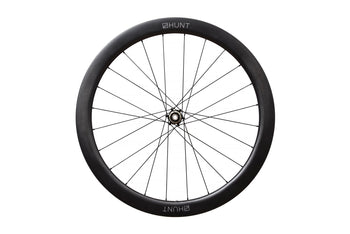

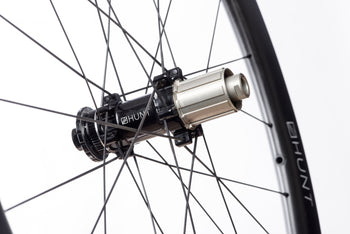

Rear Hub
- We fit the axles you need, just complete the simple form shown after checkout.
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.
- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
Bearings
- High-grade Japanese EZO bearings.
- Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
- Incredibly fast rolling.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 109kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 90Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Options
These are only some of the options you can have fitted on your wheels. To see the full range, click here
Schwalbe Pro One Tubeless Tires - 23, 25 or 28mmThe Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability. |
|
Schwalbe G One Speed Tubeless Tires - 30mmUnleashing profile and breathtakingly fast - especially when large volume counts. As a 30mm wide road race version with V-Guard, G-One Speed is a tire for the real tough jobs. You can ride it as a handmade tubular or with the most modern tubeless easy technology. But it is also a guarantee for maximum speed in the extra-wide 60mm execution - of course, not only at the fascinating beach races on Holland’s coasts. The new G-One Speed is an evolution of the former S-One and Big One. |
Reviews
Bike Magazine and Website Experts' Views

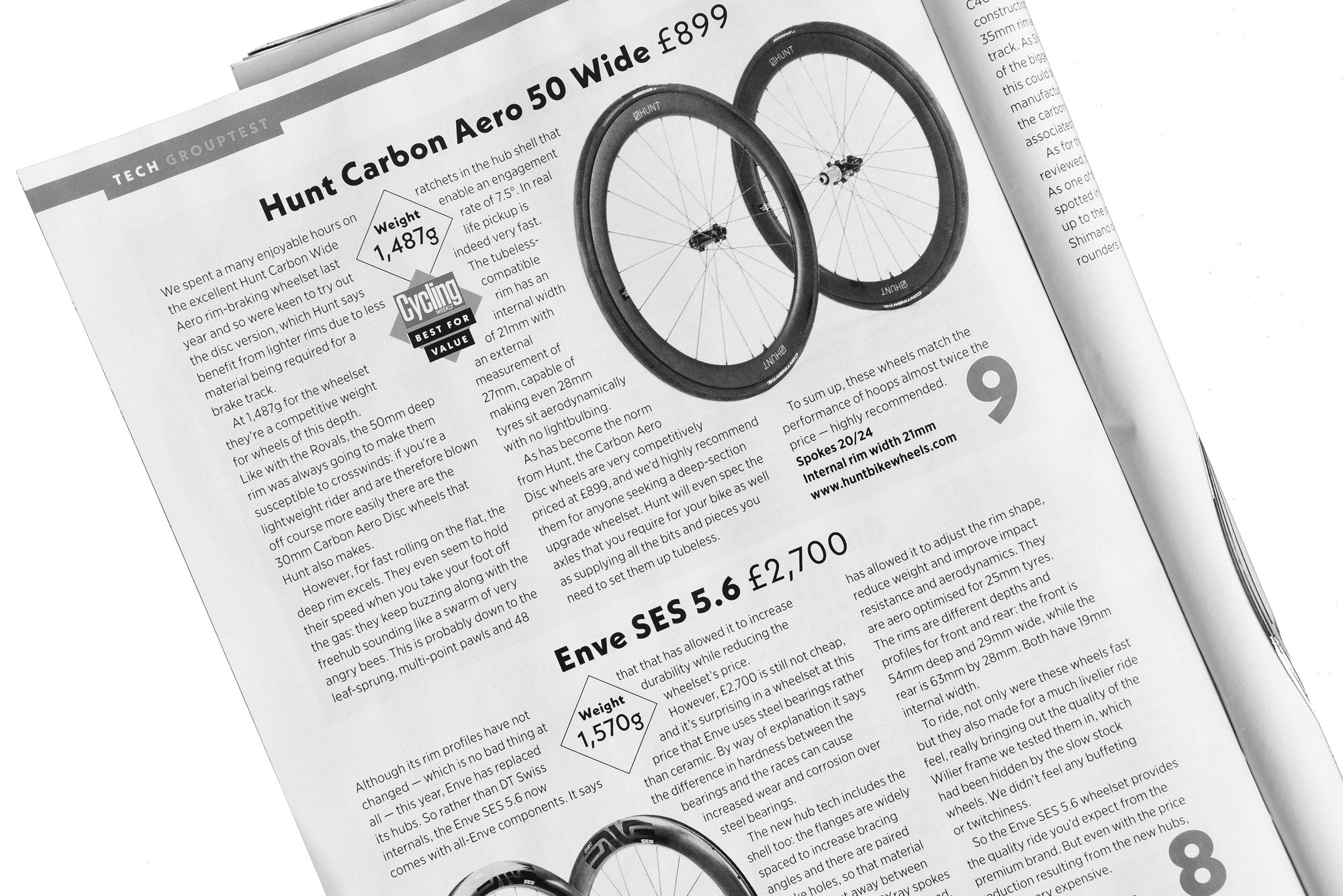

9/10 BEST VALUE AWARD - HUNT 50 CARBON AERO DISC"To sum up, these wheels match the performance of hoops almost twice the price - highly recommended." See full review in the gallery above. |
|
4.5/5 REVIEW - HUNT 4050 Carbon Aero Disc"Lightweight, stiff and fast wheelset that delivers heaps of performance for a great price" |
|
road.cc’s Best Cycling Wheels of the Year 2020/21 - 4050 Carbon Aero Disc"Overall, Hunt has delivered a wheelset that works for pretty much every road discipline, but especially for those rides where you want a blend of speed and also a lack of weight for the hills." |

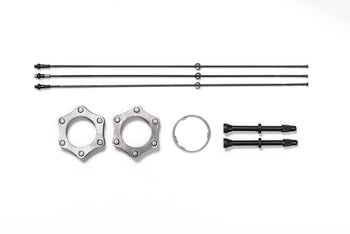

In the Box
Contents
- HUNT Black Shield tubeless rim tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
