<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>

<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by Japanese experts EZO. This wheelset has three of the rear hub bearings upgraded to S&S low-friction LU/LB seals on the internal bearing face to further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.</i>

<h1>Freehub Body</h1><i>Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>

<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.. As Shimano hydraulic brakes are appearing on many new bikes, we wanted riders to have the option so we went even more adaptable with centre-lock hubs and 6 bolt adaptors included.</i>

<h1>Tyres</h1><i>At Hunt we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>

<h1>Crit-Ready</h1><i>As used in competition by the LA Sweat race team in the USA.</i>

<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Pair 6 bolt disc adapters</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

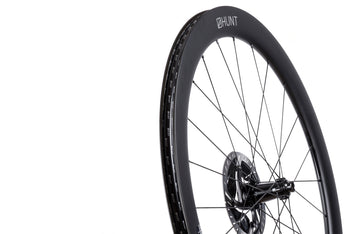

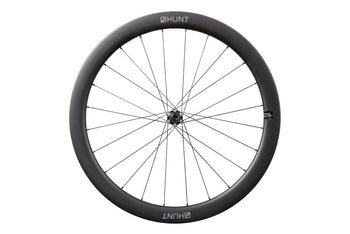

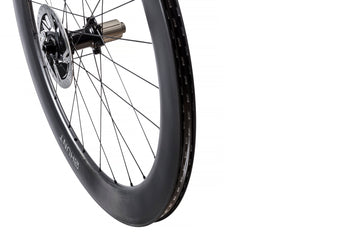

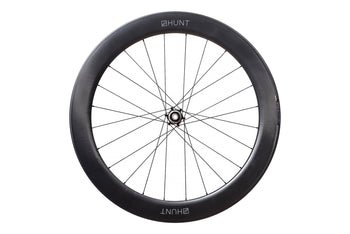

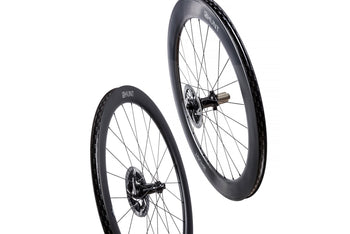

HUNT 5065 Carbon Aero Disc Wheelset

DISC-SPECIFIC AND READY FOR ALL-OUT ATTACK ON THE LOCAL CRIT CIRCUITS OR TT/TRIATHLON COURSES

50/65 Deep | 27 Wide | 1532g

The Purpose

The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.

The Purpose

Read the full aerodynamics report on the 50 Carbon Aero Disc

Road races, criteriums, and time trials, are being won by disc-brake bikes with increasing frequency. The shift is happening, and to keep up you'll need an aero wheelset that delivers speed in buckets. Introducing the 5065 Carbon Aero Disc.Read More

The 50/65mm deep rims cut through the air, providing superior aerodynamic performance. The wide 27mm U-shaped profile serves up great handling and reduces drag across multiple wind yaw-angles. The 20mm internal rim bed opens out your tire profile, providing vibration reduction, grip and low rolling-resistance.

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations.The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing 7.5° engagement. Perfect for when the hammer goes down and you need an instant response. The LU/LB bearings (which are low-friction sealed on the internal face) further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.Read Less

The Experts' View

Want to add tubeless tires?

We can supply or fit tubeless tires (including sealant) to your wheels.

The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.

Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tire. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.

Specs Overview

The latest addition to our Carbon Aero Disc race, ready for criteriums and time trials/triathlons alike

Rims | Features disc-specific, unidirectional T24/30 rims, offering 20mm internal and 27mm external widths, and a 50/65mm u-shape aero profile.
Tires | Tubeless-ready for lower weight and rolling resistance, featuring H-Lock technology for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5 degrees owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell.
Spokes | Pillar PSR reinforced bladed spokes.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
See the full specs here
Weight | 1532g

Please note: If you require a 6 bolt adaptor you can purchase separately here

hunt_gallery

Full Details

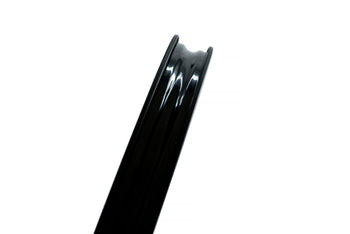

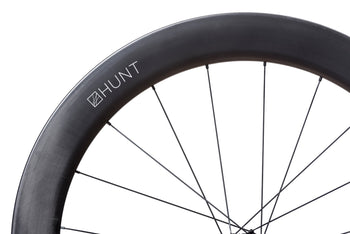

Rims

Disc-specific tubeless-ready profile
H_Lock bead-seat up-kicks, for easy and secure tubeless installation
Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes
27mm outer and 20mm inner width
50/65mm depth
Matt black, finished with matt white contrasting graphics.

Spokes

20 front and 24 rear, laced 2-cross.
Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
Straight-pull, for excellent torsional strength and direct power transfer
Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Patented Pillar Spoke Re-enforcement (butted again just before the spoke head, providing more durability in high stress area).
Black stainless finish.

Nipples

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. square spoke key included.
16mm length with washer for a strong connection to the spoke added durability.
14 gauge.
Black anodized finish.

Tires Info

Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
Please do not exceed the maximum pressure stated on your tire.
Suitable for tires from 23mm up to 50mm wide.
Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.

Axle Size

These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

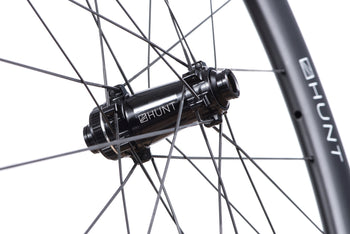

Front Hub

We fit the axles you need, just complete the simple form shown after checkout:
All existing road/CX disc front axle standards are available including:

Quick Release (Quick release skewers included)
12mm Bolt Thru
9mm Bolt Thru (uncommon)

All axle adapters are also available separately.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Polished anodized black finish with laser graphics.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

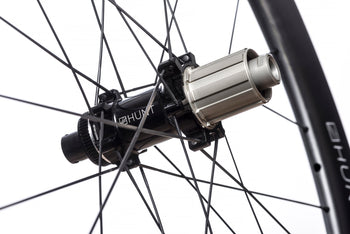

Rear Hub

We fit the axles you need, just complete the simple form shown after checkout.
All existing road/CX disc rear axle standards are available including:

Quick Release (Quick release skewers included)
12x142 Bolt Thru
12x135 Bolt Thru (uncommon)
10x135 Bolt Thru (uncommon)

All axle adapters are also available separately.
7075-T6 heat-treated aluminium alloy freehub body.
Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
All freehub standards accounted for, including:

Shimano/SRAM
Campagnolo
SRAM XD Driver
SRAM XDR Driver

Hunt Race Season Disc straight-pull super-light alloy.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.

Bearings

High-grade Japanese EZO bearings.
Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
Incredibly fast rolling.

Warranty, HUNT Rolling Road Tests & Weight Limits

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 109kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 90Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

Tubeless Tire Fitting Options

These are only some of the options you can have fitted on your wheels. To see the full range, click here

Schwalbe Pro One Tubeless Tires - 23, 25 or 28mm

The Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability.

Schwalbe G One Speed Tubeless Tires - 30mm

Unleashing profile and breathtakingly fast - especially when large volume counts. As a 30mm wide road race version with V-Guard, G-One Speed is a tire for the real tough jobs. You can ride it as a handmade tubular or with the most modern tubeless easy technology. But it is also a guarantee for maximum speed in the extra-wide 60mm execution - of course, not only at the fascinating beach races on Holland’s coasts. The new G-One Speed is an evolution of the former S-One and Big One.

Maxxis Padrone TR SS Tubeless Tires - 28mm

The Maxxis Padrone Tubeless Tires are an excellent race tire with low rolling resistance and supreme puncture protection due to the SilkShield technology. The 28mm width provides good grip and paired with our wide wheels, it creates a super aero Tire/Wheel profile.

Reviews

Bike Magazine and Website Experts' Views

	9/10 BEST VALUE AWARD "To sum up, these wheels match the performance of hoops almost twice the price - highly recommended." See full review in the gallery above.
	9/10 REVIEW "It’s hard to find a road disc wheelset that can compete with Hunt Bike Wheels 30Carbon Aero Disc wheelset on every front. This is one upgrade that road disc bike owners cannot afford to overlook."
	4/5 HIGHLY COMMENDED AWARD "It's deep enough to provide an aero benefit without creating so much surface area that it could get blown around in the wind, and the U-profile helps to ensure stability in crosswinds."
	Their low weight is evident in acceleration and while climbing "Powering along the flats they are comfortable and don't hold you back... a level of confidence that will put your best times on notice."
	FIRST LOOK First look at the HUNT Carbon Disc wheels and video discussing carbon disc brake rim technology

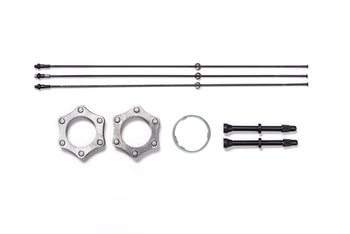

In the Box

HUNT Black Shield tubeless rim tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed
Tubeless Valves
Spare of each spoke (including nipples)
Quality control card signed by your wheel builder
