<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>

<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.</i>

<h1>Freehub Body</h1><i>Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the <em>H_CERAMIK</em> coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.</i>

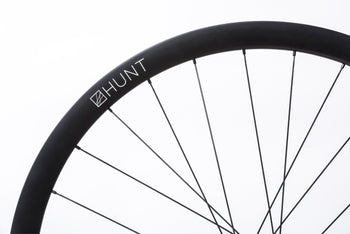

<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>

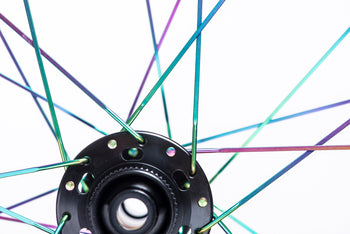

<h1>Oil-Slick Spokes</h1><i>We can also give the spokes a Ti-Nitride coating which not only gives them an eye-catching oil slick rainbow look but also improves wear and corrosion resistance due to the super-hard micro hardness of this coating. The coating is multi-compounded by ceramics and transition metal, so the bonding force between coating and base is immensely improved. This results in a really long lasting finish.</i>

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout. As Shimano hydraulic brakes are appearing on many new bikes, we wanted riders to have the option so we went even more adaptable with centre-lock hubs and 6 bolt adaptors included.</i>

<h1>Tires</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tires.</i>

<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1548 gram wheelset weight. Your acceleration and climbing will be super-charged. There are few, if any disc brake wheels that are designed for the rigours of gravel/CX/heavy-duty road that deliver like the 35 Carbon Gravel X-Wide Disc.</i>

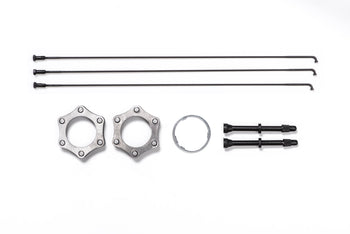

<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Pair 6 bolt disc adapters</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

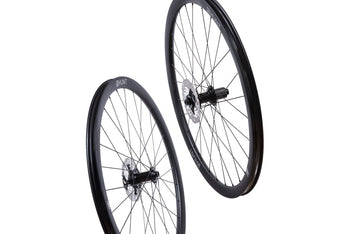

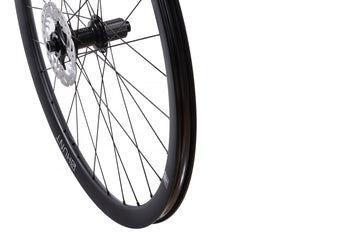

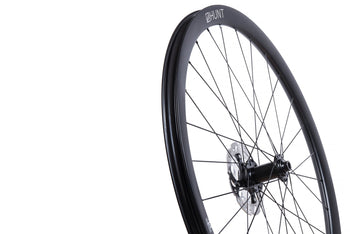

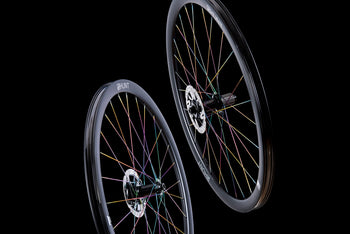

HUNT 35 Carbon Gravel Disc X-Wide Wheelset

The last word in seriously fast riding across tough gravel. Optimized for wide tires above 35c, to hit the rough stuff with confidence.

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 1548G

The Purpose

Introducing the Carbon Gravel X-Wide: Carry speed over the seriously rough stuff with confidence on these super-wide rims optimized for wide tires (40-45c). The 35mm depth was selected for stiffness and burly strength, knowing that you’ll likely be spending plenty of miles off-road. New for 2021, the Carbon Gravel X-Wide is now available with the option of hooked or hookless versions to better suit the preferences of devoted riders.

For our detailed explainer outlining the differences and characteristics of hookless and hooked click here.

Read More
Featuring the same 5 degree RapidEngage 6-pawl hub as our 30 Carbon Gravel Disc (inclusive of H_CERAMIK freehub) this wheelset offers riders a more burly option for hardcore gravel/drop-bar off-road riding and racing! Benefitting further from a 28-spoke count both front and rear (for up to 120kg riders), the result is a strong gravel/bike-packing wheelset for the heaviest of duties! The extra-wide rim is ideal for gravel and off-road tires above 35c, with the ideal width sitting between 40-45c. The minimum tire width for this wheelset is 28c. Hit the trails, HARD! Read Less

The Experts' View

30 Carbon Gravel Disc Cycling Weekly 9/10 Review

Singletracks 35 Carbon Gravel Disc X-Wide Wheelset Review

Specs Overview

Gravel Riding Supremacy

Rims | Super-wide (30mm external, 23mm rim bed) unidirectional T24/30, with 3K weave re-enforced spoke holes. Asymmetric and Disc-specific. 35mm deep, ultra-stiff and ready for the burliest of drop-bar off-roading.
Tires | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 5 degree RapidEngage 6-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XD Driver available. Centre-lock disc mount.
Spokes | Pillar PSR reinforced spokes with choice of Black or Ti-Nitride spoke coating for oil-slick rainbow look and increased wear and corrosion resistance.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
See the full specs here
Weight | 1548g

Please note: If you require a 6 bolt adaptor you can purchase separately here

hunt_gallery

Full Details

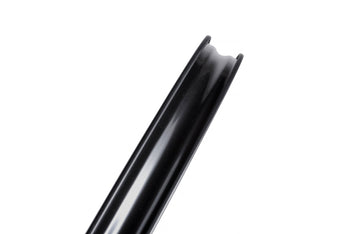

Rims

Disc-specific tubeless-ready asymmetric profile. Designed to work excellently with normal clincher tires and tubes or tubeless tires.
H_LOCK bead-seat up-kicks for easy and secure tubeless installation
Unidirectional T24/30 carbon fiber, with 3K weave re-enforced spoke holes
30mm outer and 23mm inner width ideal for 35mm+ tire widths
35mm depth
Matt black base finished with matt white contrasting graphics.

Spokes

28 front and rear, laced 2-cross.
Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
J-Bend for ease of replacement.
Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
Black stainless or Oil-Slick Ti-Nitride treatment

Nipples

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. square spoke key included.
16mm length with washer for a strong connection to the spoke added durability.
14 gauge.
Black anodized finish.

Tires Info

Maximum tire pressure for this rim is 40psi for 35-40mm tires.
Maximum tire pressures for other tire sizes: 25-28mm do not exceed 100psi, 30mm do not exceed 70psi, 33mm do not exceed 50 psi, 45-50mm do not exceed 35psi.
Please do not exceed the maximum pressure stated on your tire.
Suitable for tires from 28c+ wide, optimized for 35-40c tires.
Please note: these are not suitable for tires narrower than 28c.
Suitable tubeless gravel and CX tires are available from a huge range of companies, including Schwalbe, Hutchinson, Panaracer, Maxxis and many more.

Axle Size

These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

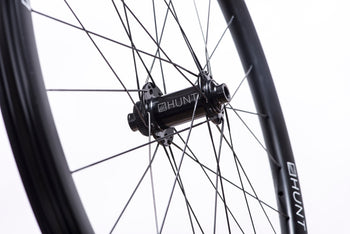

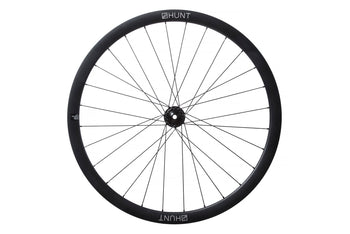

Front Hub

We fit the axles you need, just complete the simple form shown after checkout:
All existing road/CX disc front axle standards are available including:

Quick Release (Quick release skewers included)
12mm Bolt Thru
15mm Bolt Thru

All axle adapters are also available separately.
HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
7075-T6 aluminum alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
Polished anodized black finish with laser graphics.

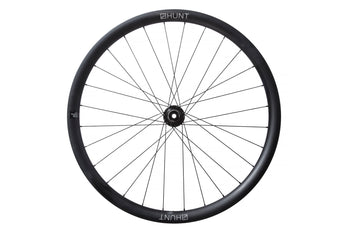

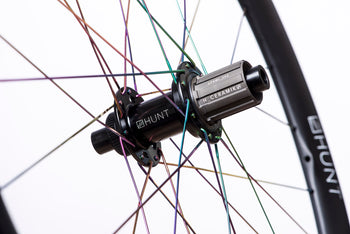

Rear Hub

We fit the axles you need, just complete the simple form shown after checkout.
All existing road/CX disc rear axle standards are available including:

Quick Release (Quick release skewers included)
12x142 Bolt Thru
12x135 Bolt Thru (uncommon)
10x135 Bolt Thru (uncommon)

All axle adapters are also available separately.
7075-T6 heat-treated aluminum alloy freehub body.
H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
6 pawl, 28 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
All freehub standards accounted for, including:

Shimano/SRAM
Campagnolo
SRAM XD Driver
SRAM XDR Driver

Hunt Race Season Disc straight-pull super-light alloy.
Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
7075-T6 aluminum alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.

Bearings

Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
Sealed cartridge replaceable units.
Dual full-contact seals.

Warranty, HUNT Rolling Road Tests & Weight Limits

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 109kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

Tubeless Tire Options

These are only some of the options you can have fitted on your wheels. To see the full range, click here

Schwalbe G-One Allround Tubeless Tires - 35/38mm

The Schwalbe Tubeless tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The G-One's are Schwalbe's brand new gravel tires, designed to offer a low rolling resistance yet offer plenty of grip on gravel and dirt tracks.

The highly respected German Magazine TOUR said: "Unbeatable with punctures... – the "self-repair" with sealant means that no tube can compare."

Panaracer GravelKing SK Plus Tubeless tires - 38/43mm

Bring it On! The GravelKing SK Plus does it all! Low profile tread patterns means this King is quick and comfortable on and off road.

The perfect tires for those multi surface adventures.

Reviews

Bike Magazine and Website Experts' Views

	Singletracks Review "You don’t have to shy away from riding rocks or popping off of water bars. The X-Wides soak up the hits and maintain confidence riding through patches of chunky trail or jarring brake bumps on gravel roads.
	5 STAR REVIEW "Sound build quality, superb ride quality, incredibly well specced out and at a fraction of the cost of many other carbon gravel wheels"
	5/5 STAR REVIEW "Tough, adaptable and wide as you want, these are an excellent choice for getting seriously gravelly"
	9/10 REVIEW FOR HUNT 30 CARBON GRAVEL DISC "The Hunt 30 Carbon Gravel Disc wheelset is versatile, robust, and caters to the needs of the modern rider."
	9/10 REVIEW FOR HUNT 30 CARBON GRAVEL DISC "The Hunt 30 Carbon Gravel Disc wheelset provides a robust option with a wide, tubeless ready rim and light weight for confident off road riding. Like all Hunt’s wheels it has a quality build with the latest features and is adaptable to whatever wheel standard. It provides a nice upgrade to a standard alloy wheelset and would work well for cyclocross, if you don’t want to deal with tubs, as well as for gravel and heavy duty road riding."
	30Carbon Aero Disc Wheels on Road.cc Road.cc first look at the HUNT Carbon Disc wheels and video discussing carbon disc brake rim technology

In the Box

HUNT Black Shield tubeless tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed
Tubeless Valves
Spare of each spoke plus nipples
Quality control card signed by your wheel builder
