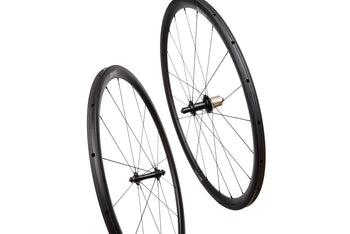

HUNT Hill Climb SL Tubular Wheelset
The Ultimate Hill Climb Wheels
30 Deep | 23 Wide | 991g | Up to 78kg
The Purpose
Designed to be the ultimate tool for Hill Climb events, not general road racing. The seriously high tensile strength 40ton 6K carbon rims are extremely light (280g), and ideal for this type of use in wheels. Please note, the rough and tumble of general road riding and racing, and long fast alpine downhills with extended heavy braking, is better suited to our T700/800 carbon fiber rims used in the rest of our range, as T700/800 carbon fiber pre-preg has higher impact and heat resistance. Read More

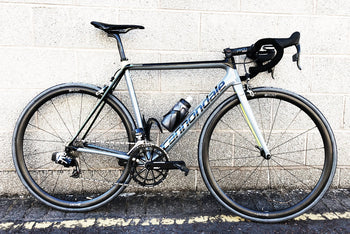

Bringing the spoke count down is a clear and obvious way to save weight, but we've also invested in Pillar's high-end Megalite spokes, weighing just 3.4g each! 2017-18 National Hill Climb Champion, Dan Evans, has been crucial to the development of the wheelset, and says "obviously they’re lovely and light but the main thing that comes across is how stiff and solid they feel, nothing like other climbing wheelsets on the market that’s for sure". Read Less
The Experts' View
Specs Overview
A Featherweight Champion
- Rims | Extremely high tensile strength 40ton 6K carbon-fiber that weighs just 75GSM. Please note - not suitable for normal clincher or tubeless tires.
- Tires | Suitable for 700c tubular tires between 23mm and up to 30mm. Tires not included.
- Hubs | Sprint SL J-Bend Hubs, with 7.5 degree engagement. Ideal for fast hill climb accelerations.
- Spokes | Pillar Megalite Bladed Spokes. 3.4g each. 16 Front / 20 Back.
- QR | Hunt Ti Skewers.
- See the full specs here

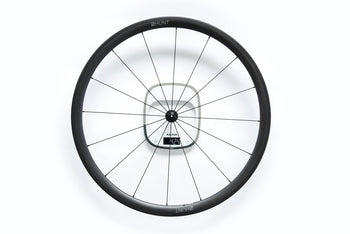

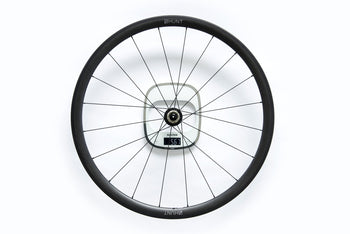

- 991g
Full Details

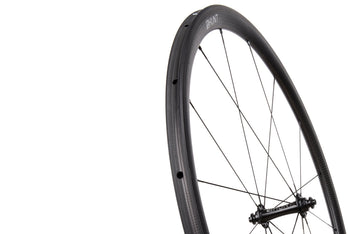

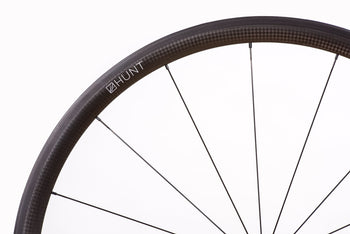

Rims
- Tubular Team rim for tubular tires, not suitable for normal clincher or tubeless tires.
- Extremely high tensile strength 40ton 6K carbon-fiber mixed with Toray T700/T800 unidirectional.
- Just 280g each.
- 23mm outer width ideal for 23-28mm road tire widths.
- 30mm deep wide rounded aero section.
- Griptec basalt ceramic fiber brake-track. Please note: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions.
Spokes
- Pillar's Megalite bladed spokes weighing just 3.4g each.
- Front: 16 spokes laced radially - Aero triple-butted profile.
- Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2.
- Rear: 20 spokes laced 2 cross drive-side and radially non-drive side.
- Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2.
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment.
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke and added durability.
- 14 gauge
- Black anodized finish
Tires Info
- Maximum tire pressure for this rim is 120psi. Please do not exceed the maximum pressure stated on your tire.
- Only suitable for tubular tires.

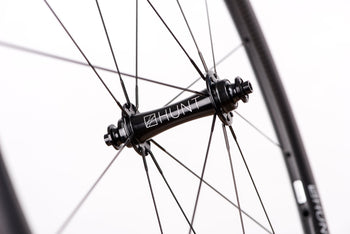

Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Circular machined dropout interface steps for added stiffness.

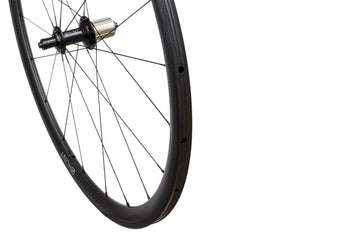

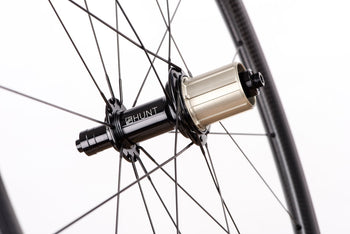

Rear Hub
- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble tooth pawl engagement (9 points of engagement total) for instant acceleration - just 7.5 degrees engagement.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
Bearings
- High-grade by EZO Japan.
- Sealed cartridge replaceable units.
- Upgraded to low-friction seals to further reduce rolling resistance.
- Incredibly fast rolling.
Quick-Releases
- Hunt Titanium, only 29g front and 32g rear.
- Corrosion resistant stainless steel springs.
- Polished anodized black finish with laser graphics.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 78kg is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 70kg then an experienced bike mechanic should check the wheel regularly and it is advisable to use minimum 25mm tires at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
NOTE: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions.
Reviews
Bike Magazine and Website Experts' Views

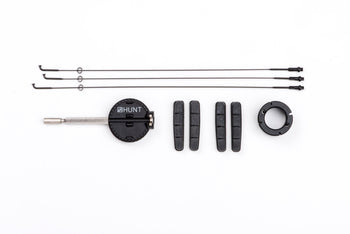

In the Box
Contents
- Pair Ti Quick-Releases
- Griptec brake pads by Brakco
- Cassette spacer for 8/9/10 speed
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
