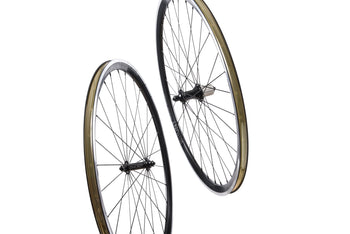

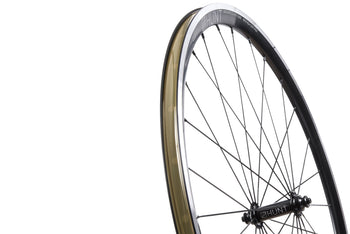

HUNT Race Aero SuperDura Wheelset
THE GO-TO FOR POWERFUL RIDERS REQUIRING STIFFNESS AND DURABILITY. INCREDIBLE PERFORMANCE WITH A RIDER WEIGHT LIMIT OF 130KG
31 Deep | 24 Wide Ext | 19 Wide Int | 1595g
The Purpose
The race wheelset for riders up to 130kg, inspired by and developed alongside Hunt OpenDev team member (and ex-pro Leicester Tigers rugby player) Will Johnson. Speed and strength in equal measure. Read More
Will has been a member of our Hunt OpenDev team since we launched it in March 2016. Will and a friend, also a professional rugby player (who weighed 125kg), both bought 4Season Dura wheels (suggested max rider weight 110kg) from us in January 2016 as winter wheelsets. Then they both rode the Paris-Roubaix Sportive on them, that was a nervous day for us here! The two of them successfully completed Roubaix on the 4Season Dura wheels but fancied something with more of a performance focus and some weight-saving over the low profile/round-spoked/brass-nippled 4Season Duras.
So with Will's input we designed the new Race Aero SuperDura wheels. They feature a deep and wide rim combined with bladed aero spokes for extra wind-cheating advantage. The high-spec components build into a sub-1600g wheelset, and yet high (28/32) spoke count and seriously strong rim material result in wheelset that can truly handle the power of larger riders. Read Less
The Experts' View
Want to add tubeless tires?
We can supply or fit tubeless tires (including sealant) to your wheels.
The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.
Specs Overview
For the Super Strong
- Rims | Niobium aluminium alloy-T10 Heat treated. 31mm deep. The broad 19mm internal and 24mm external rim width creates an excellent tire profile for wide road tires and cross tires up to 45c. H-lock bead-seat for easy and secure tubeless installation.
- Tires | Designed with a wide 19mm rim bed to create a wider tire profile. Great with 700x23mm tires but ideal for 25, 28 and cross tires up to 45c. Also work excellently with clincher tires and tubes.
- Hubs | 4Season Dura 6061-T6, large 12mm front and 15mm rear axles, large double-sealed main bearings, extra hub cap sealing, 7075-T6 axle. 48 teeth with 3x3 multi-point pawls and strong individual leaf springs for each pawl resulting in just 7.5 deg engagement.
- QR | Hunt Race Season super-light with heat-treated alloy/brass cam plate actuation and stainless steel springs.
- See the full specs here
- Weight | 1595g
Full Details

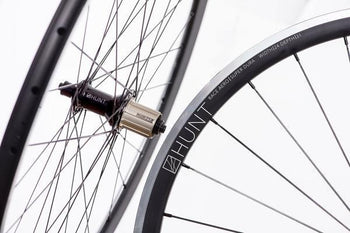

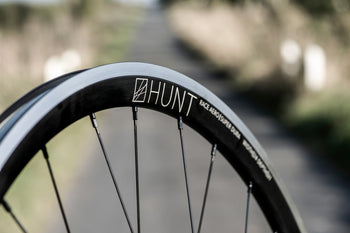

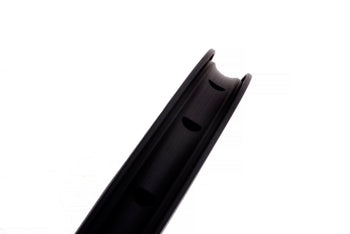

Rims
- Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Hunt Black Shield tubeless rim tape fitted.
- H-lock bead-seat up-kicks for easy and secure tubeless installation.
- Niobium – T10 heat-treated aluminium alloy.

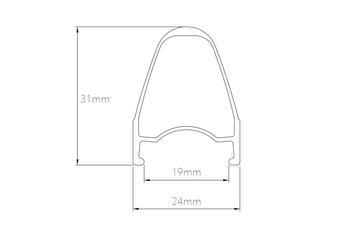

- 24mm outer and 19mm inner width ideal for 23-45mm tire widths.
- 31mm deep rounded aero section.
- Precision machined rim brake track.
- Matt black anodized finish with matt white heated decals for excellent durability.
Spokes

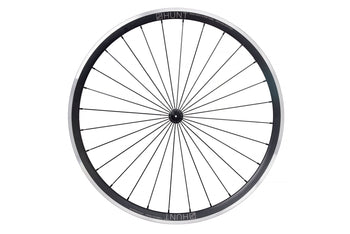

- Front: 28 spokes laced radially - Aero triple-butted profile
- Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.

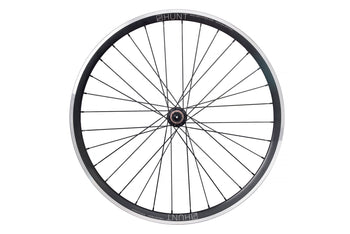

- Rear: 32 spokes laced 3 cross.
- Asymmetric spoke gauges on rear wheel creates a more stable wheel build.
- Drive side - butted 2.0-2.5/1.05-2.0 then PSR section is 2.2.
- Non-drive side - butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- J-Bend for ease of sourcing replacements and flexibility.
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 14mm length for a strong connection to the spoke.
- 14 gauge
- Black anodized finish
Tires Info
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
- The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire
- Suitable for tires from 23mm up to 50mm wide.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.

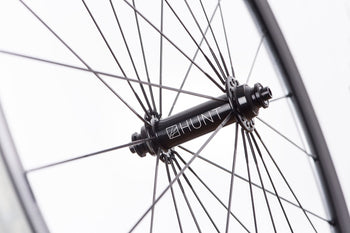

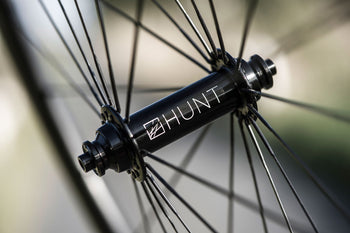

Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Circular machined dropout interface steps for added stiffness
- Polished anodized black finish with laser graphics.

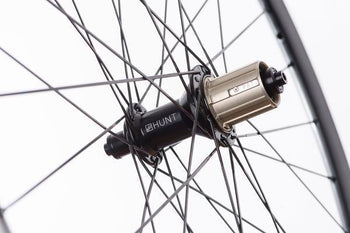

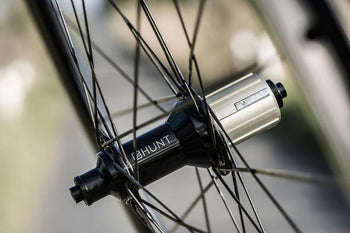

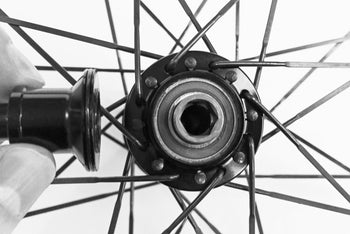

Rear Hub
- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- Freehub mechanism - 3x3 pawls with super fast 7.5 degree engagement, 3 multi-point pawls with 3 teeth each, individual leaf-pawl springs are strong in poor winter conditions, 48 tooth ratchet ring. 9 point engagement shares high torque loads increasing wear life.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles, 12mm front, 15mm rear.
- Polished anodized black finish with laser graphics.
Bearings
- High-grade by TPI.
- Sealed cartridge replaceable units.
- Upgraded to LU/LB seals; low-friction sealed on the internal bearing face; double contact sealing on the exposed faces.

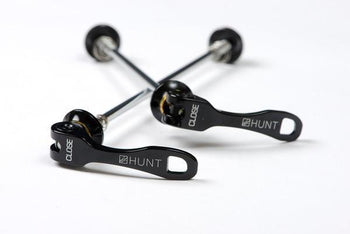

Quick-Releases
- Hunt Super-light Race Season design, only 33g front and 37g rear.
- 7075-T6 heat-treated alloy lever, head and nut.
- Brass cam plate actuation.
- 1000kgf tested high-strength cro-moly spindles.
- Corrosion resistant stainless steel springs.
- Polished anodized black finish with laser graphics.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 130kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use minimum 28c tires at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tire Options
These are only some of the options you can have fitted on your wheels. To see the full range, click here
 |
Schwalbe Pro One Tubeless Tires- 23, 25 or 28mmThe Schwalbe Tubeless road tires consistently win plaudits from journalists and customers alike. We have been testing them for a long time and have been very impressed. The One Pro's are Schwalbe's top of the range tires and feature their triple compound tread so you get extremely low rolling-resistance combined with excellent grip and durability. |
 |
Maxxis Padrone TR SS Tubeless Tires - 28mmThe Maxxis Padrone Tubeless Tires are an excellent race tire with low rolling resistance and supreme puncture protection due to the SilkShield technology. The 28mm width provides good grip and paired with our wide wheels, it creates a super aero Tire/Wheel profile. |
Reviews
Bike Magazine and Website Experts' Views
|
Hunt Race Aero SuperDura Review"These are some of the most rugged aero road wheels ever made." |

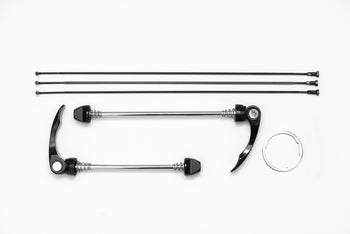

In the Box
Contents
- Front wheel and Rear Wheels with HUNT Black Shield tubeless rim tape fitted.
- Pair quick-releases
- Cassette spacer for 8/9/10 speed
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
