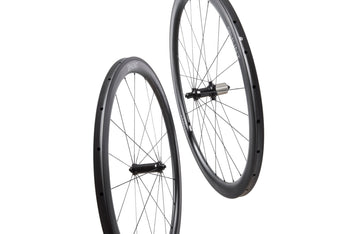

HUNT Team 45 Carbon Wide Tubular Wheelset
Ultimate Road Race Tubular Option, Designed for Canyon dhb p/b Bloor Homes (UCI Continental) Pro Team
45 Deep | 25 Wide | 1379g
The Purpose

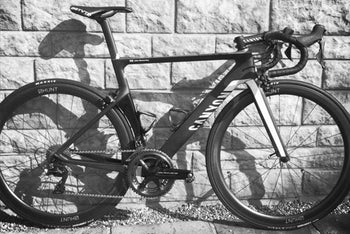

The Canyon dhb p/b Bloor Homes (UCI Continental) team are racing and training on our tubeless-ready clincher wheelsets. However, for the biggest races tubular rims were needed - they provide the ability for the riders to keep rolling whilst waiting for their service car in the event of a puncture so we specified tubular rims for the 45CWT. Read More
We all want to go fast; that was the brief. Going deep is obvious for aero gains, wide rims with a U-profile provide great handling and reduce drag across multiple wind yaw-angles. Durability is also essential for the rough and tumble of pro racing and the 45CWT rims deliver with strong Toray unidirectional carbon fiber for the sidewall construction and 3K weave for strength in multiple directions at the rim bed and spoke holes.

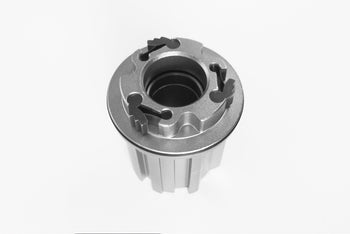

The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5 degree engagement. Perfect for when the hammer goes down and you need an instant response. The strong individual leaf spring pawls are louder than circular spring set-ups but we think that is the right decision to make for this type of wheelset. Also, stiffness = Speed, especially when sprinting for the win, and the Sprint hubs have large 15mm diameter hub axles for sprinting and out-of-saddle climbing. Read Less
Specs Overview
The Pros Choice
- Rims | Toray T700/T800 carbon-fiber. Unidirectional sidewalls with 3K weave rim bed and spoke bed areas, Griptec basalt ceramic fiber brake-track for excellent braking and durability. Please note; not suitable for normal clincher or tubeless tires.
- Tires | Suitable for 700c tubular tires between 23mm and up to 33mm for cyclo-cross. Tires not included.
- Hubs | Race Season Sprint straight-pull super-light, 15mm diameter 7075-T6 axle. Circular dropout interface steps for added stiffness. 48 teeth with 3x3 multi-point pawls and strong individual leaf springs for fast acceleration. Steel spline insert to protect cassette body.
- QR | Hunt 4 Season Internal Cam for high torque tightening, secure fitting with low dirt ingress. Stainless steel springs.
- UCI Approved
- See the full specs here
- 1379g
Full Details

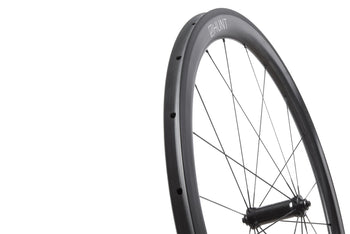

Rims
- Tubular Team rim for tubular tires, not suitable for normal clincher or tubeless tires.
- Toray T700/T800 unidirectional and 3K weave carbon-fiber with 3K weave bed and spoke areas.
- 25mm outer width ideal for 23-33mm road and cyclo-cross tire widths.
- 45mm deep super wide rounded aero section.
- Griptec basalt ceramic fiber brake-track. Please note: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions.

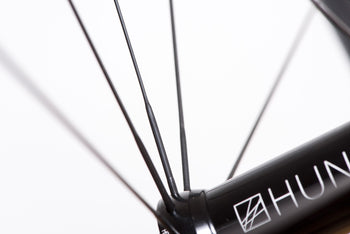

Spokes

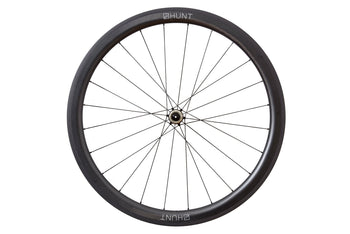

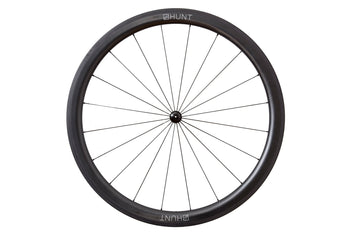

- Front: 20 spokes laced radially - Aero triple-butted profile.
- Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2.

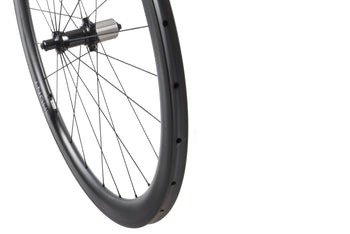

- Rear: 24 spokes laced 2 cross drive-side and radially non-drive side.
- Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2.
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless treatment.
Nipples
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. Square spoke key included.
- 16mm length with washer for a strong connection to the spoke and added durability.
- 14 gauge
- Black anodized finish
Tires Info
- Maximum tire pressure for this rim is 120psi. Please do not exceed the maximum pressure stated on your tire.
- Only suitable for tubular tires.

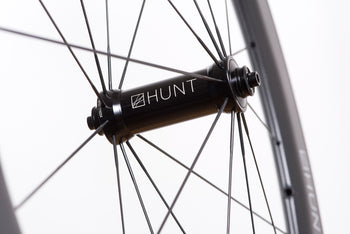

Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Circular machined dropout interface steps for added stiffness.

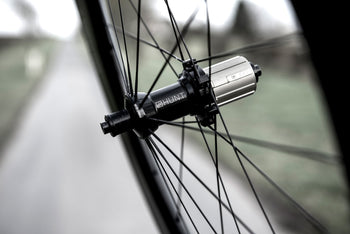

Rear Hub
- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble tooth pawl engagement (9 points of engagement total) for instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
Bearings
- High-grade by EZO Japan.
- Sealed cartridge replaceable units.
- Upgraded to low-friction seals to further reduce rolling resistance.
- Incredibly fast rolling.

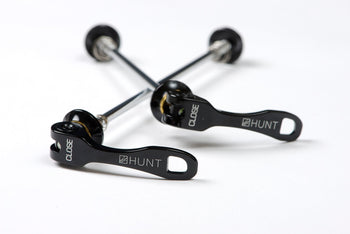

Quick-Releases
- Hunt Super-light Race Season design, only 33g front and 37g rear.
- 7075-T6 heat-treated alloy lever, head and nut.
- Ultra-hard wearing nickle coated brass cam actuation plate.
- 1000kgf tested high-strength cro-moly spindles.
- Corrosion resistant stainless steel springs.
- Polished anodized black finish with laser graphics.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 109kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 90Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use minimum 28mm tires at max 100psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
NOTE: We are not able to control other brands brake pad compounds and we cannot test every possible brake pad so please use only our HUNT Brakco Griptec carbon specific rim brake pads with these wheels. Two pairs of pads are included with your wheels and further sets can be ordered from here. We chose the Brakco Griptec pads because they outperform a lot of the market leaders’ best selling compounds in both dry and wet laboratory conditions.

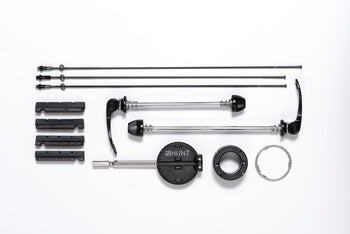

In the Box
Contents
- Pair quick-releases
- Griptec brake pads by Brakco
- Cassette spacer for 8/9/10 speed
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
