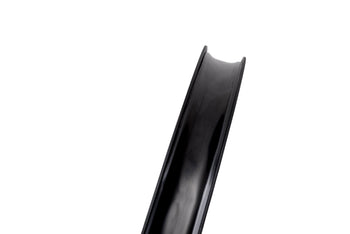

<h1>Rims</h1><i>The TrailWide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6 (+69% tensile strength vs 6061-T6) alloy rim sticks with the wider-is-better mantra. Designed for 2.3"-2.5" tyres, the wide 30mm (internal) rim provides support to the tyre during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>

<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>

<h1>Nipples</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>

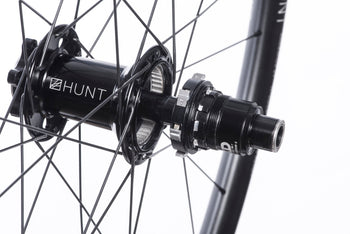

<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The TrailWide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a superfast 3 degree engagement, means you will be able to put the power down straight out of the corners.</i>

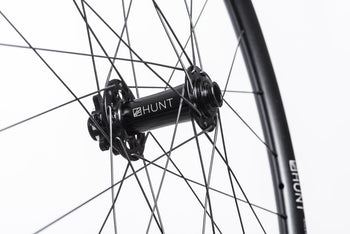

<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>

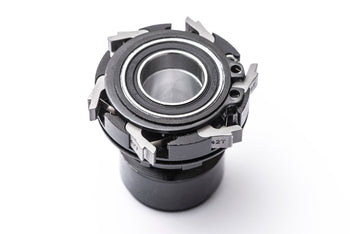

<h1>Freehub Body</h1><i>Choose between SRAM/Shimano 8/9/10/11sp, Shimano Microspline or SRAM XD to be fitted to your TrailWide Wheels. Each freehub features six individual MultiPawls to ensure strong engagement, even in the grimmest conditions.</i>

<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>

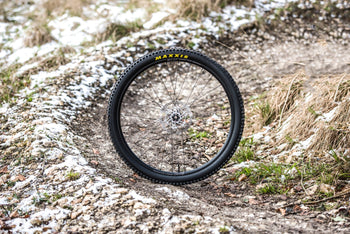

<h1>Tubeless Tyres Fitted</h1><i>Gain the most out of your riding with a set of tubeless Maxxis or Schwalbe Tyres fitted and set up tubeless with sealant ready to roll straight out of the box.</i>

<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>

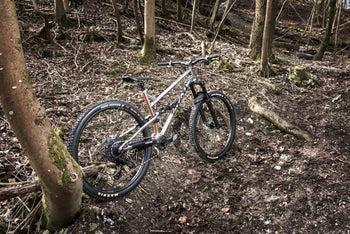

<h1>Dream Build</h1><i>Cotic FlareMAX with TrailWide</i>

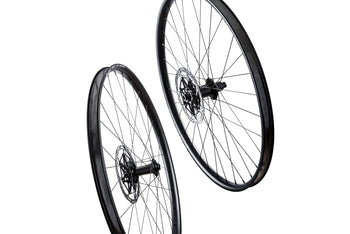

HUNT Trail Wide MTB Wheelset

Trail Wide: Ride Without Boundaries

27.5/29" | 30 Wide Int | 1757/1823g

The Purpose

The Trail Wide is your go to wheelset no matter the conditions. Optimized to take a no-nonsense approach on the descents and not hold you back on the climbs. The Trail Wide is the answer to your weekends at the trail centre; back country epics; days spent smashing through your local woods and late afternoon sessions on the piece of trail still being bedded in - so pretty much a wheelset which can do it all!

The Trail Wide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6 series alloy rim sticks with the wider-is-better mantra. Designed around for 2.3"-2.5" tires, the wide 30mm (internal) rim provides support to the tire during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tire is the last thing you need to happen!

The HUNT RapidEngage MTB hubs have been specced based on our demands for an MTB wheelset. That is a superfast engagement, long lasting hub pawls no matter the conditions you're riding in and to be optimized to accommodate the latest 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. A super low engagement of 3° means you will be able to put the power down straight out of the corners and not have any lag when jumping up those techy climbs.

The Purpose

The Trail Wide is your go to wheelset no matter the conditions. Optimized to take a no-nonsense approach on the descents and not hold you back on the climbs Read More

The TrailWide is the answer to your weekends at the trail centre; back country epics; days spent smashing through your local woods and late afternoon sessions on the piece of trail still being bedded in - so pretty much a wheelset which can do it all!

The Trail Wide rim includes details which are high on the durability factor to make sure you finish every ride with a big grin. The 6069-T6 series alloy rim sticks with the wider-is-better mantra. Designed around for 2.3"-2.5" tires, the wide 30mm (internal) rim provides support to the tire during hard cornering, landing in a root strewn shoot or when your throttling down a high-speed section and folding a tire is the last thing you need to happen!

The Hunt RapidEngage MTB hubs have been specced based on our demands for an MTB wheelset. That is a superfast engagement, long lasting hub pawls no matter the conditions you're riding in and to be optimized to accommodate the latest 148x12mm Boost (Rear) and 110x15mm Boost (Front) standard. A super low engagement of 3 degrees means you will be able to put the power down straight out of the corners and not have any lag when jumping up those techy climbs.Read Less

The Experts' View

Specs Overview

We see wheels as a system, not an single component

Rims | 6069 T6 (+69% tensile strength vs 6061-T6) welded construction, 30mm wide (internal), work-hardened shot-peened finish.
Hubs | 3° RapidEngage, boost (110/148) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for standard hubs are available. (We will fit the axles you need, just complete the simple form shown after checkout or add a comment in the notes section of the cart page).
Spokes | 28F/32R Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes.
Tires | Optimised for 2.35"-2.6" tires set up Tubeless, but also work very well with 2.25"-2.8".
Axles | Oversized 7075-T6 heat-treated aluminum alloy axles.
See the full specs here
Weight | 1757/1823g 27.5"/29"

hunt_gallery

More Tech

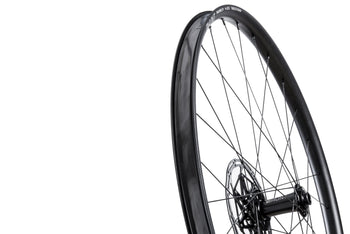

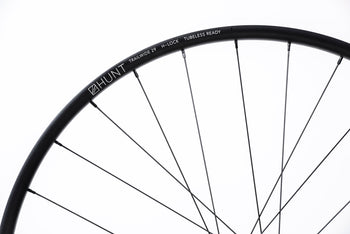

Rims

30mm internal width ideal for 2.3"-2.4" tire widths, but also work very well with 2.25"-2.8".
6069-T6 heat-treated aluminum alloy (+69% tensile strength vs 6061-T6).
Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
H-lock bead-seat up-kicks for easy and secure tubeless installation.
Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.

Spokes

J-bend cold drawn.
28F/32R spoke count.
Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
Black stainless treatment.

Nipples

Hard-anodized alloy for weight reduction and strength.
Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
Long 14mm thread for durability.
14 gauge.
Black finish

Tires Info

Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
Designed to work perfectly with tubeless and non-tubeless tires.
Suitable tubeless MTB tire combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.

Axle Size

Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

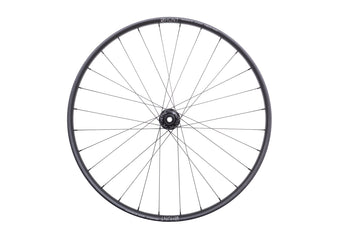

Front Hub

Forged and CNC’d 6061-T6 heat treated aluminum alloy Hub body
110x15mm or 100x15mm spacing. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
Oversized 7075-T6 aluminum alloy axles.
6 bolt disc mount.
Polished anodized black finish with laser graphics.

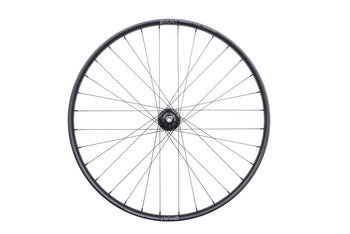

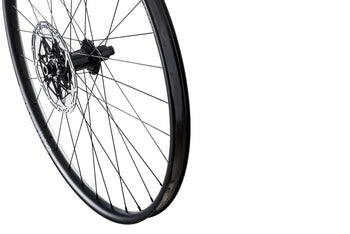

Rear Hub

Forged and CNC’d 6061-T6 heat treated aluminum alloy hub body.
148x12mm or 142x12mm spacing.
Oversized 7075-T6 heat treated aluminum Axles.
7075-T6 heat-treated aluminum alloy freehub body.
9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
7075-T6 aluminum alloy axles.
Polished anodized black finish with laser graphics.

Bearings

Precision sealed cartridge replaceable units.
Large diameter ball bearings for extra durability.
Dual full-contact rubber seals.

Warranty, Support and Weight Limits

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 264lbs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 240lbs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 40psi as this will reduce the fatigue on the wheelset.

Crash replacement 40% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

Reviews

Bike Magazine and Website Experts' Views

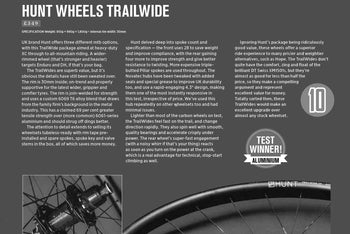

	10/10 REVIEW "Lighter than most of the carbon wheels on test, the Trail Wides feel fast on the trail, and change direction rapidly. They also spin well with smooth, quality bearings and accelerate crisply under power. The rear wheel's super-fast engagement reacts as soon as you turn on the power at the crank, which is a real advantage for technical, stop-start climbing as well." See full review in the images above.

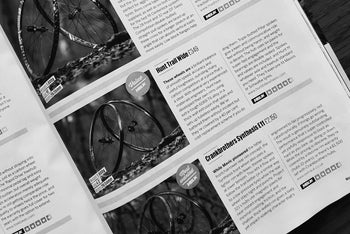

	4.5/5 REVIEW "These wheels area a brilliant balance of smooth speed, accuracy and userful toughness, outriding many carbon competitors at a price that's a steal." See full review in the images above.
	"Hit the sweet spot of performance and price". "Hunt Trail Wide is a very good wheelset that is strong, light and durable. They’re ideal for hitting up trail centers every weekend, backcountry adventures into the unknown, or a week of pure descending in the mountains or bike park"
	Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400? "With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered."
	First Look "Hunt's new mountain bike wheelsets look like a bit of a bargain."
	First Look "A family of three new premium alloy off-road wheels – the EnduroWide, TrailWide & XCWide – ready to hit every kind of trail that awaits…"
	First Look "Hunt is well established when it comes to producing high quality, high value road and gravel wheelsets, but before now hasn't produced a wheelset for mountain biking."

In the Box

HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
Cassette spacer for 8/9/10 speed
Tubeless Valves

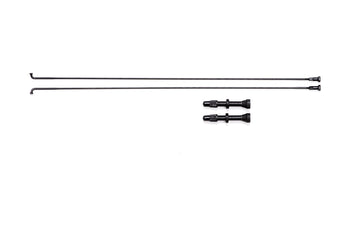

Spare of each spoke plus nipples
Quality control card signed by your wheel builder
